LT230R Dakar style high/Low and diff lock shifter

I forgot we made this for the LT230 transfer box , then Ben Ellis asked in a comment if I had any stuff on the LT230 to gearbox info, I didn’t but I did have this so I thought I would share it with the community.

We fitted them to the last Desert Warrior 1 and the Desert Warrior 3, it sits only on the transfer box, you can detach the long lever by unscrewing it just above the pink part, then the rest stays on the transfer box , this means you can remove the transfer box really easy , no messing with silly clips and bushes.

move the lever forwards and backwards for high/Low and rotate it do engage/disengage the difflock.

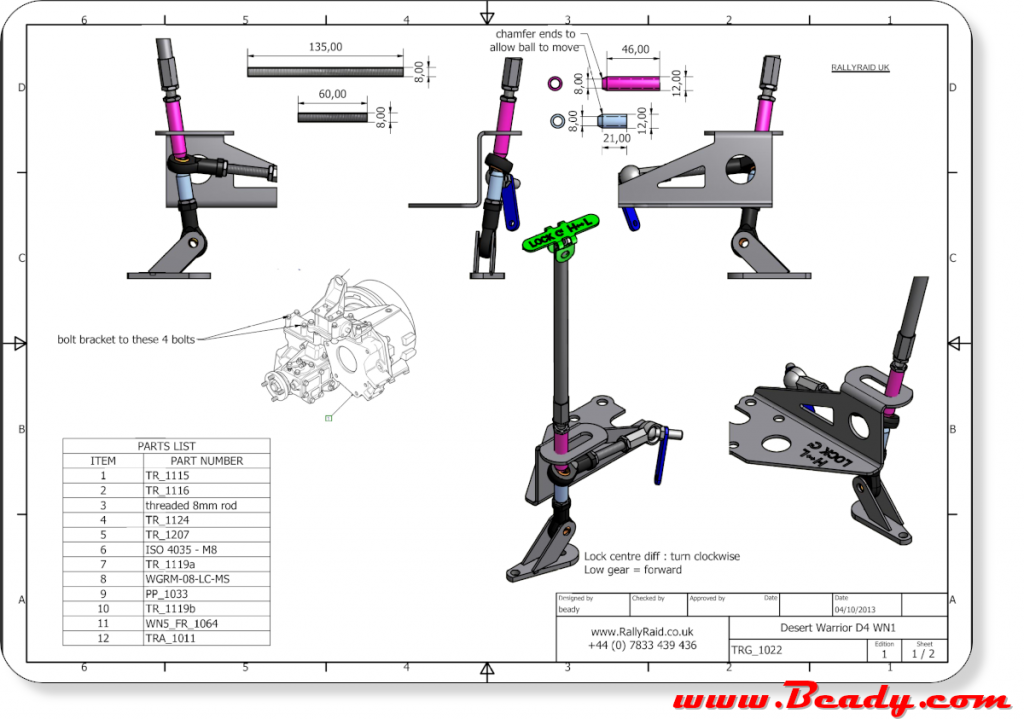

here’s the CAD models .

STEP files TRG_1022.zip
