Race car pit stands ultra tall

By Beady 7th December 2014

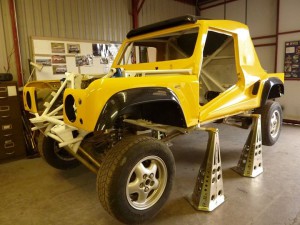

Bowler wildcat on beady race tall sill stands

I designed these to stack when not needed and weigh 30% less than using a wheel type stand.

Bowler wildcat on beady race tall sill stands

I used stress analysis to get the top mount just right.

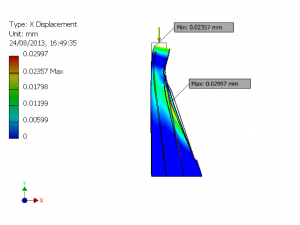

Sill Stands extra tall stress analysis by Beady race
Stress analysis of stands
